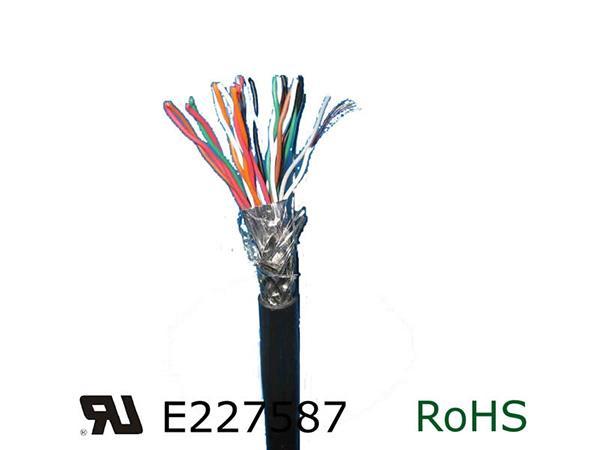

UL 2464 多芯电线
详细信息
1.额定电压： 300V
2.温度范围：-20℃~80℃
3.外径容差：±0.15mm
4.试验电压：1500V
5.导体：裸铜或镀锡铜
6.绝缘体：半硬质聚氯乙烯
7.护套：聚氯乙烯
8.颜色：绿-黑-橙-紫
| 导体 | 绝缘体 | 被覆 | |||
| 线规 | 导体构造 NO. ×Φ mm | 直径 mm | 绝缘厚度 mm | 被覆厚度 mm | 完成外径 mm |
| 28×3C | 7×0.127 | 0.25 | 0.80 | 3.70 | 28×3C |
| 28×4C | 7×0.127 | 0.25 | 0.80 | 3.90 | 28×4C |
| 28×5C | 7×0.127 | 0.25 | 0.80 | 4.20 | 28×5C |
| 28×6C | 7×0.127 | 0.25 | 0.80 | 4.50 | 28×6C |
| 28×7C | 7×0.127 | 0.25 | 0.80 | 4.50 | 28×7C |
| 28×8C | 7×0.127 | 0.25 | 0.80 | 4.80 | 28×8C |
| 28×9C | 7×0.127 | 0.25 | 0.80 | 5.10 | 28×9C |
| 28×10C | 7×0.127 | 0.25 | 0.80 | 5.20 | 28×10C |
| 28×15C | 7×0.127 | 0.25 | 0.85 | 5.80 | 28×15C |
| 28×25C | 7×0.127 | 0.25 | 1.00 | 7.60 | 28×25C |
| 28×37C | 7×0.127 | 0.25 | 1.00 | 8.30 | 28×37C |
| 28×50C | 7×0.127 | 0.25 | 1.00 | 9.50 | 28×50C |
| 26×3C | 7×0.16 | 0.25 | 0.80 | 3.90 | 26×3C |
| 26×4C | 7×0.16 | 0.25 | 0.80 | 4.20 | 26×4C |
| 26×5C | 7×0.16 | 0.25 | 0.80 | 4.50 | 26×5C |
| 26×6C | 7×0.16 | 0.25 | 0.80 | 4.80 | 26×6C |
| 26×7C | 7×0.16 | 0.25 | 0.80 | 4.80 | 26×7C |
| 26×8C | 7×0.16 | 0.25 | 0.80 | 5.10 | 26×8C |
| 26×9C | 7×0.16 | 0.25 | 0.80 | 5.40 | 26×9C |
| 26×10C | 7×0.16 | 0.25 | 0.80 | 5.70 | 26×10C |
| 26×15C | 7×0.16 | 0.25 | 0.85 | 6.40 | 26×15C |
| 26×25C | 7×0.16 | 0.25 | 1.00 | 8.00 | 26×25C |
| 26×37C | 7×0.16 | 0.25 | 1.00 | 9.20 | 26×37C |
| 26×50C | 7×0.16 | 0.25 | 1.00 | 10.40 | 26×50C |
| 24×3C | 7×0.20 | 0.25 | 0.80 | 4.20 | 24×3C |
| 24×4C | 7×0.20 | 0.25 | 0.80 | 4.50 | 24×4C |
| 24×5C | 7×0.20 | 0.25 | 0.80 | 4.90 | 24×5C |
| 24×6C | 7×0.20 | 0.25 | 0.80 | 5.20 | 24×6C |
| 24×7C | 7×0.20 | 0.25 | 0.80 | 5.20 | 24×7C |
| 24×8C | 7×0.20 | 0.25 | 0.80 | 5.50 | 24×8C |
| 24×9C | 7×0.20 | 0.25 | 0.80 | 5.80 | 24×9C |
| 24×10C | 7×0.20 | 0.25 | 0.80 | 6.20 | 24×10C |
| 24×15C | 7×0.20 | 0.25 | 0.85 | 6.90 | 24×15C |
| 24×25C | 7×0.20 | 0.25 | 1.00 | 8.60 | 24×25C |
| 24×37C | 7×0.20 | 0.25 | 1.00 | 9.80 | 24×37C |
| 24×50C | 7×0.20 | 0.25 | 1.00 | 11.40 | 24×50C |
| 22×3C | 7×0.25 | 0.25 | 0.80 | 4.70 | 22×3C |
| 22×4C | 7×0.25 | 0.25 | 0.80 | 5.10 | 22×4C |
| 22×5C | 7×0.25 | 0.25 | 0.80 | 5.50 | 22×5C |
| 22×6C | 7×0.25 | 0.25 | 0.80 | 5.80 | 22×6C |
| 22×7C | 7×0.25 | 0.25 | 0.80 | 5.80 | 22×7C |
| 22×8C | 7×0.25 | 0.25 | 0.80 | 6.30 | 22×8C |
| 22×9C | 7×0.25 | 0.25 | 0.80 | 6.70 | 22×9C |
| 22×10C | 7×0.25 | 0.25 | 0.80 | 6.80 | 22×10C |
| 22×15C | 7×0.25 | 0.25 | 0.85 | 7.80 | 22×15C |
| 22×25C | 7×0.25 | 0.25 | 1.00 | 10.00 | 22×25C |
| 22×37C | 7×0.25 | 0.25 | 1.00 | 11.30 | 22×37C |
| 22×50C | 7×0.25 | 0.25 | 1.00 | 12.90 | 22×50C |
| 18×2C | 34×0.18 | 0.4 | 0.80 | 5.80 | 18×2C |
| 18×3C | 34×0.18 | 0.4 | 0.80 | 6.00 | 18×3C |
| 18×4C | 34×0.18 | 0.4 | 0.85 | 7.10 | 18×4C |
| 18×5C | 34×0.18 | 0.4 | 0.85 | 7.30 | 18×5C |
适用范围：适用于多种电子设备的内部或外部连接
